FEATURES

The characteristics of pumps are durable high temperature and assistant corrosion.

1. Pumps are manufactured from the four materials(FRPP, CFRPP, CPVC, PVDF) to ensure resistance to
    high heat and corrosion.

2. Dry Vapor seal (2~5HP)：ensure to prevent pumps and bearings form being etched by chemical gas
    and prolong the using life of pump.

3. Pumps apply to be installed inside of tank due to the in-outlet screwed design without screws.

4. For etching spraying equipments, cooling circulating and be used with filter.

5. Pumps are no damaged in drying running.

6. Compared to traditional FC motor front cover, motor spacer which is innovatively made of FRPP can
    dramatically weaken acid corrosion and reduce the weight of machine.

MODEL INDENTIFICATION

KPT
-
50
-
VK
-
5
-
6
-
V
-
F
-
B
1

2

3

4

5

6

7

8
1.MODEL: KPT
2.IN-OUTLET: 40-1.5” 50-2”
3.SPECIFIC WEIGHT: VK-1.1 VP-1.4
4.POWER: 2, 3, 5HP
5.FREQUENCY: 5-50Hz 6-60Hz
6.RUBBER: N-NBR E-EPDM V-VITON
7.MATERIAL: F-FRPP C-CFRPP A-CPVC P-PVDF

SERIES SPECIFICATION

MODEL CURVENO IN-OUTLET(mm) HP FLOW(L/Min) WEIGHT(kg)
IN OUT VK VP VK VP
Frequency:50Hz
KPT-40VK(P)-25 i 50 40 2 180 130 12 8 38
KPT-40VK(P)-35 j 50 40 3 180 200 16 14 40
KPT-40VK(P)-55 k 50 40 5 200 200 16 16 55
KPT-50VK(P)-55 l 50 40 5 200 240 18 16 55
Frequency:60Hz
KPT-40VK(P)-26 I 50 40 2 210 180 12 12 38
KPT-40VK(P)-36 J 50 40 3 240 160 14 14 40
KPT-40VK(P)-56 K 50 40 5 250 335 18 16 55
KPT-50VP-36 L 50 50 3 - 210 - 16 40
KPT-50VP-56 M 50 50 5 - 290 - 20 55

PERFORMANCE CURVE CHART

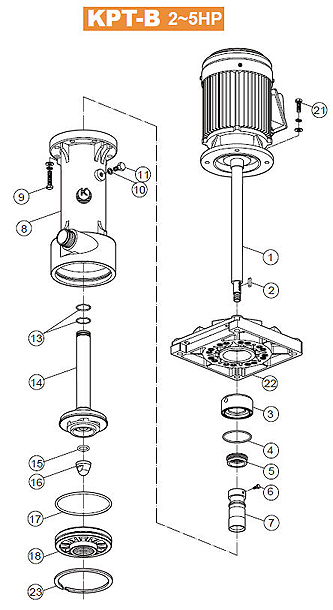

CONSTRUCTION

NODESCRIPTIONMATERIALNODESCRIPTIONMATERIAL
1 Motor FC / AL 10 Release Screw O-ring NBR/EPDM/VITON
2 Shaft Key SUS 11 Release Screw FRPP/CFRPP/CPVC/PVDF
3 Ceramic FRPP/CFRPP/CPVC/PVDF 13 Impeller O-ring NBR/EPDM/VITON
4 Vapor Seal O-ring NBR/EPDM/VITON 14 Impeller FRPP/CFRPP/CPVC/PVDF
5 Vapor Seal NBR/EPDM/VITON 15 Impeller Nut O-ring NBR/EPDM/VITON
6 Shaft Sleeve Screw SUS 16 Impeller Nut FRPP/CFRPP/CPVC/PVDF
7 Shaft Sleeve FRPP/CFRPP/CPVC/PVDF 17 Front O-ring NBR/EPDM/VITON
8 Main Body FRPP/CFRPP/CPVC/PVDF 18 Front Cover FRPP/CFRPP/CPVC/PVDF
9 Main Body Screw SUS 23 C-Clip FRPP/CFRPP/CPVC/PVDF

DIMENSION DRAWING

MODEL DIMENSION
KPT-40VK(P)-2-B A B C D E G H J K M
345 398 760 310 50

76.5

 180 195 40 60
N O P Q R S T U V W
138 150 55 52 185 222 260 222 260 15
KPT-40VK(P)-2-B A B C D E G H J K M
345 398 760 310 50 76.5 180 195 40 60
N O P Q R S T U V W
138 150 55 52 185 222 260 222 260 15
KPT-40VK(P)-3-B A B C D E G H J K M
345 398 790 340 50 76.5 180 195 40 60
N O P Q R S T U V W
138 177 57 16 185 222 260 222 260 15
KPT-40VK(P)-5-B A B C D E G H J K M
345 398 726 328 50 76.5 180 200 40 60
N O P Q R S T U V W
138 150 55 52 185 222 260 222 260 15
KPT-50VP-3-B A B C D E G H J K M
345 398 760 310 50 76.5 180 195 50 60
N O P Q R S T U V W
138 150 55 52 185 222 260 222 260 15
KPT-50VP-5-B A B C D E G H J K M
345 398 790 340 50 76.5 180 195 50 60
N O P Q R S T U V W
138 150 55 52 185 222 260 222 260 15
